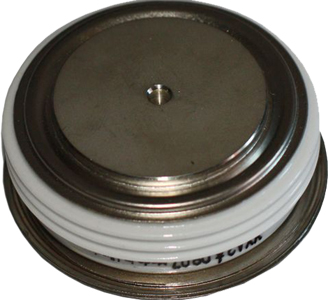

Силовые выпрямительные диоды таблеточной конструкции
- Герметичные металлостеклянные и металлокерамические корпуса таблеточного исполнения
- Диоды выпускаются прямой и обратной полярности
- Неуправляемые и полууправляемые выпрямительные мосты
- Размагничивающие диоды
- Транспорт
- Электропривода для промышленности и транспорта
- Сварка
- Гальваника
|
Тип |
U rrm V |
I rrm mA |
I f(av)(Tc=100oC) A |
I fsm10ms кA |
U fm / Ifm V/А |
Tjmax oC |
Rthic oC/W |
Вес кг. |
|
Д123-200 |
300-1800 |
- |
200 |
- |
- |
- |
- |
0.091 |
|
Д123-200 |
5200-6000 |
35 |
200 |
3.00 |
2.60/628 |
140 |
0.080 |
0.091 |
|
Д123-250 |
300-1800 |
- |
265 |
- |
- |
- |
- |
0.091 |
|
Д123-250 |
4400-5000 |
35 |
265 |
3.50 |
2.45/785 |
150 |
0.080 |
0.091 |
|
Д123-320 |
300-1800 |
- |
320 |
- |
- |
- |
- |
0.091 |
|
Д123-320 |
3400-4200 |
35 |
320 |
4.20 |
2.05/1005 |
150 |
0.080 |
0.091 |
|
Д123-400 |
300-1800 |
- |
490 |
- |
- |
- |
- |
0.091 |
|
Д123-400 |
2400-3200 |
35 |
490 |
5.50 |
1.80/1256 |
175 |
0.080 |
0.091 |
|
Д123-500 |
300-1800 |
- |
620 |
- |
- |
- |
- |
0.070 |
|
Д123-500 |
400-2200 |
35 |
620 |
7.50 |
1.55/1570 |
180 |
0.080 |
0.070 |
|
Д123-630 |
200-1000 |
35 |
790 |
9.00 |
1.35/1978 |
190 |
0.080 |
0.070 |
|
Д133-320 |
4500-6000 |
40 |
360 |
5.00 |
2.20/1005 |
150 |
0.045 |
0.180 |
|
Д133-400 |
1000-4000 |
50 |
640 |
7.00 |
2.10/1256 |
160 |
0.036 |
0.180 |
|
Д133-500 |
1000-2800 |
50 |
910 |
11.00 |
1.70/1570 |
175 |
0.036 |
0.180 |
|
Д133-630 |
1000-3200 |
35 |
1040 |
11.00 |
1.60/1978 |
175 |
0.036 |
0.180 |
|
Д133-800 |
400-2000 |
40 |
1170 |
12.00 |
1.60/2512 |
175 |
0.036 |
0.180 |
|
Д133-1000 |
400-2000 |
40 |
1220 |
16.00 |
1.55/3140 |
175 |
0.036 |
0.180 |
|
Д133-1250 |
1200-2200 |
50 |
1370 |
16.00 |
1.70/3925 |
180 |
0.036 |
0.180 |
|
Д133-1600 |
200-1000 |
50 |
1600 |
18.00 |
1.45/5024 |
175 |
0.036 |
0.180 |
|
Д143-630 |
2400-4000 |
50 |
900 |
10.50 |
2.10/1978 |
160 |
0.027 |
0.240 |
|
Д143-800 |
1800-2800 |
50 |
1340 |
18.00 |
1.65/2512 |
175 |
0.027 |
0.240 |
|
Д143-1000 |
400-1800 |
65 |
1490 |
19.00 |
1.55/3140 |
175 |
0.027 |
0.240 |
|
Д143-1250 |
400-2000 |
70 |
1540 |
20.00 |
1.65/3925 |
175 |
0.027 |
0.240 |
|
Д143-1600 |
400-1200 |
70 |
2000 |
23.00 |
1.35/5024 |
175 |
0.027 |
0.240 |
|
Д143-2000 |
200-1000 |
70 |
2120 |
24.00 |
1.40/6280 |
175 |
0.027 |
0.240 |
|
Д243-800 |
2400-4400 |
45 |
990 |
12.50 |
1.95/2512 |
160 |
0.027 |
0.240 |
|
Д243-1000 |
1800-3200 |
50 |
1330 |
18.00 |
1.65/3140 |
175 |
0.030 |
0.240 |
|
Д243-1250 |
2400-3200 |
70 |
1460 |
18.50 |
1.85/3925 |
175 |
0.027 |
0.240 |
|
Д243-1600 |
1200-2200 |
70 |
1780 |
22.00 |
1.60/5024 |
175 |
0.027 |
0.240 |
|
Д243-2000 |
200-800 |
70 |
2000 |
25.00 |
1.40/6280 |
190 |
0.027 |
0.240 |
|
Д153-1000 |
5200-6000 |
100 |
1240 |
20.00 |
2.00/3140 |
150 |
0.018 |
0.550 |
|
Д153-1250 |
4400-5000 |
100 |
1390 |
25.00 |
1.95/3925 |
150 |
0.018 |
0.550 |
|
Д153-1600 |
3400-4200 |
100 |
1820 |
27.00 |
1.80/5024 |
160 |
0.018 |
0.550 |
|
Д153-2000 |
2400-3200 |
100 |
2510 |
33.00 |
1.55/6280 |
175 |
0.018 |
0.550 |
|
Д253-1250 |
3600-5000 |
100 |
1250 |
22.00 |
1.90/3925 |
150 |
0.018 |
0.550 |
|
Д253-1600 |
400-2200 |
90 |
2420 |
35.00 |
1.50/5020 |
175 |
0.018 |
0.550 |
|
Д253-2000 |
400-2400 |
55 |
2730 |
35.00 |
1.45/6280 |
175 |
0.018 |
0.550 |
|
Д353-800 |
4500-6000 |
100 |
800 |
12.00 |
3.50/2500 |
140 |
0.020 |
0.550 |
|
Д353-2000 |
2400-3200 |
100 |
2000 |
65.00 |
1.75/6280 |
175 |
0.018 |
0.550 |
|
Д163-1250 |
5200-6000 |
130 |
1290 |
21.00 |
1.95/3925 |
140 |
0.016 |
0.710 |
|
Д163-1600 |
4400-5000 |
130 |
1670 |
28.00 |
1.90/5024 |
150 |
0.016 |
0.710 |
|
Д163-2000 |
3400-4200 |
130 |
2170 |
31.00 |
1.77/6280 |
160 |
0.016 |
0.710 |
|
Д163-2500 |
2400-3200 |
130 |
2990 |
42.00 |
1.60/7850 |
175 |
0.016 |
0.710 |
|
Д163-3200 |
1200-2200 |
130 |
3590 |
48.00 |
1.35/10048 |
175 |
0.016 |
0.710 |
|
Д163-4000 |
200-1000 |
130 |
4320 |
55.00 |
1.30/12560 |
175 |
0.015 |
0.710 |
|
Д163-5000 |
200-600 |
130 |
5000 |
55.00 |
1.15/15700 |
190 |
0.015 |
0.710 |
|
Д173-1250 |
4800-6000 |
150 |
1250 |
25.00 |
1.70/3925 |
140 |
0.011 |
1.200 |
|
Д173-1600 |
3800-5000 |
150 |
1600 |
30.00 |
1.65/5024 |
150 |
0.011 |
1.200 |
|
Д173-2000 |
5200-6000 |
150 |
2340 |
29.00 |
2.00/6280 |
150 |
0.010 |
1.200 |
|
Д173-2500 |
4400-5000 |
150 |
2580 |
37.00 |
1.95/7850 |
150 |
0.010 |
1.200 |
|
Д173-3200 |
3400-4200 |
150 |
3400 |
43.00 |
1.80/10048 |
160 |
0.010 |
1.200 |
|
Д173-4000 |
2400-3200 |
150 |
4680 |
53.00 |
1.60/12560 |
175 |
0.010 |
1.200 |
|
Д173-5000 |
1200-2200 |
150 |
5640 |
65.00 |
1.35/15700 |
175 |
0.010 |
1.200 |
|
Д173-6300 |
200-1000 |
150 |
6590 |
75.00 |
1.30/19782 |
175 |
0.010 |
1.200 |
|
Д273-2000 |
6200-6500 |
150 |
2140 |
25.00 |
2.25/6280 |
150 |
0.010 |
1.200 |
|
Д273-2500 |
3400-5000 |
250 |
2500 |
52.20 |
2.10/7850 |
150 |
0.010 |
1.600 |
|
Д273-3200 |
2800-4000 |
250 |
3200 |
62.50 |
1.85/10048 |
150 |
0.010 |
1.600 |
|
Д273-4000 |
600-2400 |
150 |
4000 |
81.00 |
1.51/12560 |
175 |
0.010 |
1.600 |
|
Д273-5000 |
200-2000 |
150 |
5000 |
100.00 |
1.43/15700 |
175 |
0.010 |
1.600 |
|
Д273-6300 |
200-1500 |
150 |
6300 |
100.00 |
1.42/19782 |
190 |
0.010 |
1.600 |
